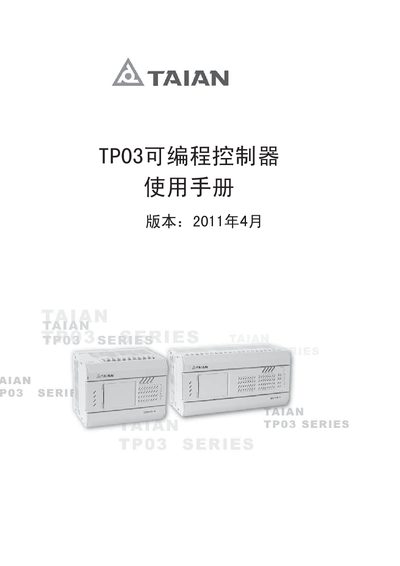

Taian TP03 Programmable Controller User Manual
This manual introduces the Taian TP03 high‑speed programmable controller, its main functions, instruction set and supported communication interfaces. It describes the controller’s hardware layout, I/O capacity, and the various operating modes available for PLC applications.
The document is organized into chapters covering basic specifications, wiring and installation, programming interface, communication protocols (RS‑422, MODBUS, Profibus‑DP, DeviceNet, Ethernet), special functions such as high‑speed counting, and a detailed troubleshooting guide. This manual is written in Japanese.
Taian TP03 specifications
| Program memory size | 4–16 k steps |
|---|---|
| Basic instruction execution time | 0.31 µs per AND step, 0.45 µs per D step |
| Maximum I/O points | 256 points |
| High‑speed counter frequency | 100 kHz |
All Taian TP03 documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum number of I/O points the TP03 can handle?
The TP03 can handle up to 256 digital input and output points.
What is the highest counting frequency available on the TP03?
The built‑in high‑speed counter operates up to 100 kHz.
What timer range can be set on the TP03 controller?
Timers can be programmed from 0.001 seconds up to 3276.7 seconds.
How much flash memory does the TP03 M type have?
The TP03 M type contains 8,000 steps of flash memory.
What is the maximum number of digital input points for the TP03 H type?
The TP03 H type can handle up to 256 digital input points.
What is the maximum number of input and output points for the TP03 controller?
The TP03 supports up to 60 input points and 10 output points.
