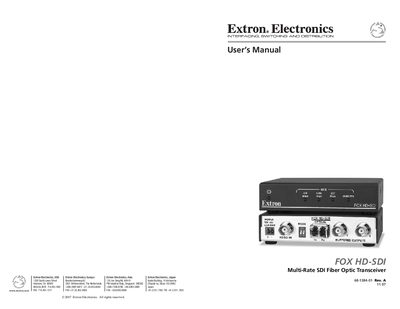

This is a product user manual, which introduces the features and characteristics of EXTRON FOX HD-SDI Multi-Rate SDI Fiber Optic Transceiver.
This manual covers safety symbols, handling warnings, and warranty information for the Extron FOX HD‑SDI fiber optic transceiver family. It explains the three operating modes—bidirectional transceiver, transmitter, and receiver—and lists the product’s key features.
Installation and operation sections describe mounting options (rack, tabletop, projector), power wiring, fiber‑optic connections, DIP‑switch configuration, and front‑panel indicators. The guide also includes reference tables, part numbers, optional accessories, and detailed technical specifications.
| Maximum video rate | 2.97 Gbps |
|---|---|
| Daisy‑chain capability | Up to 10 transceivers |
| Return loss | < ‑25 dB @100 MHz |
| DC offset | ±5 mV |
Up to ten transceivers may be daisy‑chained.
It supports multi‑rate SDI video up to 2.97 Gbps.
