The Philips Brilliance LCD monitor with LightFrame™ Brightness Enhancement technology is designed to reduce eye fatigue and provide a comfortable visual experience. It features SmartImage and TrueVision technology, supports a high-gloss piano white surface design, and has a SmartContrast ratio of 30000:1. It has a fast response time of 2 milliseconds, DVI-D input, and HDCP support. It also offers single-key format conversion and convenient connectivity for peripheral devices.
The Philips 220X1SV is a 22‑inch LCD monitor that uses Philips' LightFrame technology to reduce eye strain. It includes SmartImage for adaptive picture quality, TrueVision for accurate colour reproduction, and SmartContrast with a 30 000:1 ratio for deep blacks.

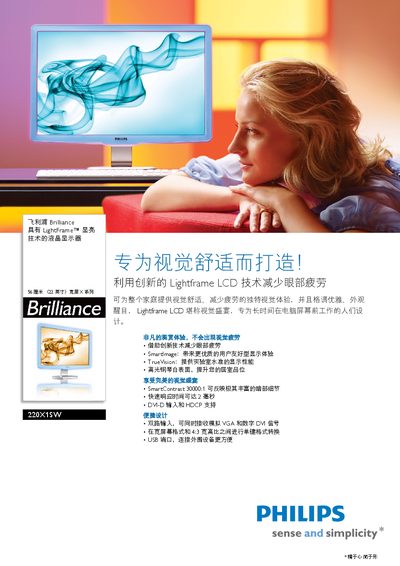

The leaflet provides full technical specifications, including a native resolution of 1680 × 1050, VGA and DVI‑D video inputs, USB 2.0 connectivity, and power‑saving ECO mode. Dimensions, weight, MTBF, and compliance certifications are also listed. This manual is written in Chinese.
| Resolution | 1680 × 1050 pixels |
|---|---|
| Panel size | 22 inches (55.9 cm) |
| Aspect ratio | 16:10 |
| Pixel pitch | 0.282 × 0.282 mm |
| Brightness | 250 cd/m² |
| SmartContrast | 30 000:1 |
| Standard contrast ratio | 1000:1 |
| SmartResponse time | 2 ms |
| Refresh rate | 60 Hz |
| Viewing angle | 160° horizontal / 160° vertical |
| USB port | USB 2.0 x1 |
| Power consumption (ECO mode) | < 17.5 W |
| Dimensions with stand | 429 × 517 × 201 mm |
| Weight with stand | 4.88 kg |
The monitor provides a SmartContrast of 30 000:1 and a standard contrast ratio of 1000:1.
In ECO mode the monitor consumes less than 17.5 watts.
The monitor with the stand measures 429 × 517 × 201 mm.
