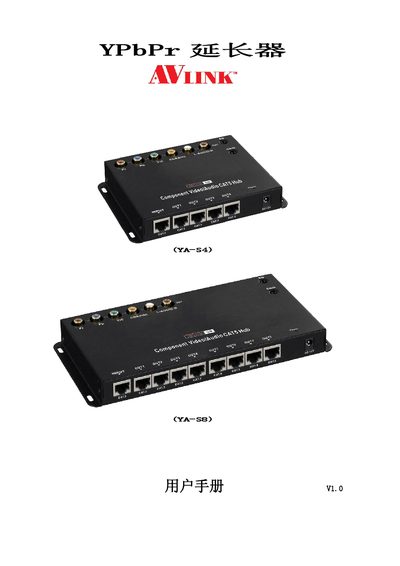

The user manual for YPbPr Extender (YA-S4) (YA-S8) V1.0 introduces the features and functions of the YPbPr Extender, including adjustable length compensation and YPbPr signal gain, supported video and audio types, etc.
This user manual describes the contents of the YA‑S4 and YA‑S8 packaging, the device features, and detailed specifications. It includes diagrams for connecting the extenders to HDTVs and audio equipment using RJ‑45 and RCA cables.
Installation instructions cover connecting video and audio RCA cables, linking the local and remote RJ‑45 ports with CAT‑5 cable, powering the units, and adjusting the EQ and GAIN knobs to compensate for cable length and signal loss. This manual is written in Chinese.
| Video input interface | RJ‑45 (1) |
|---|---|
| Video output interfaces | 4 RJ‑45 (YA‑S4) / 8 RJ‑45 (YA‑S8) |
| Audio output | RCA (R/L) stereo |
| Maximum resolution | 1080p |
| Maximum cable length | 300 m |
| Power supply | DC 12 V / 1.25 A |
| Operating temperature | 0 ~ 50 °C |
The YA‑S4 provides four RJ‑45 output ports.
They require a DC 12 V supply delivering 1.25 A.
