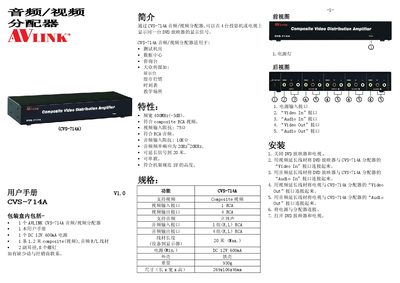

This document is the user manual for the Audio/Video Distributor (CVS-714A), which describes the features, characteristics, and installation methods of the product.
The CVS-714A is an audio/video splitter that allows a single DVD player's signal to be sent simultaneously to up to four projectors or TVs. It supports composite video and stereo audio, with a 400 MHz bandwidth and 1U rack‑mountable design, making it suitable for test labs, data centers, kiosks, and exhibition displays.
The manual includes an introduction, a list of features, detailed specifications, step‑by‑step installation instructions, and guidance on daisy‑chaining multiple units. It also provides wiring diagrams and safety notes for proper operation. This manual is written in Chinese.
| Bandwidth | 400 MHz (-3 dB) |
|---|---|
| Video input impedance | 75 Ω |
| Audio input impedance | 10 kΩ |
| Audio frequency response | 20 Hz ~ 20 kHz |
| Maximum signal extension | 20 m |
| Rack height | 1U |
| Power supply | DC 12 V 600 mA |
| Weight | 930 g |
| Dimensions (L×W×H) | 269 mm × 106 mm × 46 mm |
It can display the same DVD source on up to four projectors or TVs.
It accepts composite video via RCA connectors.
The signal can be extended up to 20 meters.
