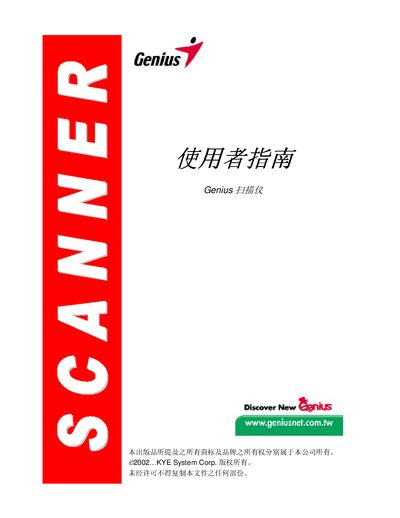

Genius Scanner User Manual, introduces the scanner installation, use, maintenance and quick function key usage methods
This reference manual provides step‑by‑step instructions for installing and setting up the Genius HR7X Slim scanner, including required hardware and software, USB connection, and driver installation. It also explains how to use the scanner’s functions, such as scan modes, quick‑key operations, and image editing tools.
Additional sections cover system requirements, package contents, maintenance tips, troubleshooting, detailed specifications, warranty information, FCC compliance, and contact details for Genius support worldwide. This manual is written in Chinese.
| Dimensions | 435 x 265 x 73 mm |
|---|---|
| Weight | 2.5 kg |
| Operating Temperature | 10 °C to 40 °C |
| Scan Area (reflective) | 8.5" x 11.69" (216 mm x 297 mm) |
| Optical Resolution | 1200 dpi |
| Maximum Software Resolution | 24000 dpi |
| Interface | USB |
| Lamp Type | Cold cathode |
| Power Supply | DC 24 V, 550 mA |
| Power Consumption (operating) | 13.2 W |
The scanner connects to the computer via a USB interface.
The HR7X Slim provides an optical resolution of 1200 dpi.
It requires a DC 24 V, 550 mA power adapter.
