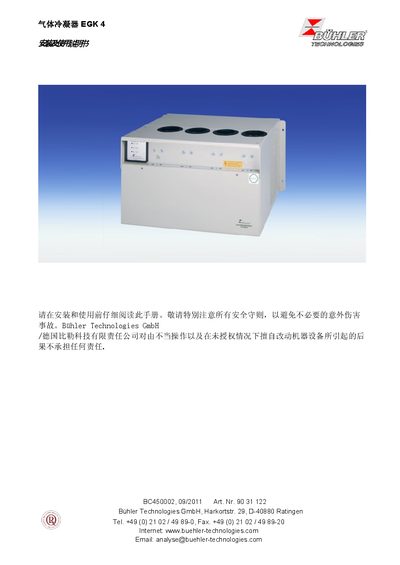

This manual introduces the installation and operation of gas condenser EGK4, including safety precautions, installation, operation, maintenance and disposal.
The EGK4 gas condenser is designed for indoor use in gas analysis systems. The manual provides safety instructions, installation steps, wiring diagrams, operation procedures, maintenance requirements and fault‑diagnosis information.
Key topics include safety precautions, proper spacing and ventilation, connection of heat exchangers, power supply requirements, and procedures for replacing pump hoses or cleaning the heat exchanger. This manual is written in Chinese.
| Cooling capacity (at 25 °C) | 800 kJ/h |
|---|---|
| Power supply | 115 V or 230 V, 50/60 Hz |
| Power consumption | 170 VA / 500 VA |
| Fuse rating | 10 A |
| Dimensions | ≈510 × 355 × 450 mm |
| Weight | ≈38 kg |
| Refrigerant | R134a |
The equipment must be installed by qualified personnel, follow all safety notes, keep at least 10 cm clearance on each side, use original parts, avoid explosive atmospheres and wear protective gloves, mask and goggles as described.
A minimum clearance of 10 cm (4 inches) must be maintained on both sides of the condenser to ensure free air flow.
