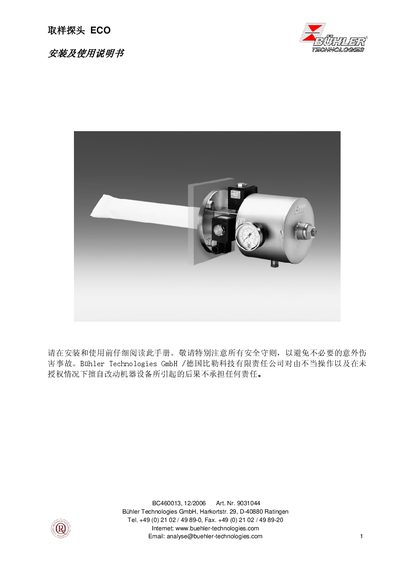

This manual describes the installation and use of the ECO sampling probe.
The ECO sampling probe is a key component of gas pre‑treatment systems. This manual provides safety instructions, transport and storage requirements, detailed installation steps, wiring connections, and operating procedures.
It also covers routine maintenance, filter replacement, back‑blow operation, fault diagnosis, repair, disposal, and a list of recommended spare parts with part numbers. This manual is written in Chinese.
| Maximum working temperature | 120 °C |
|---|---|
| Storage temperature range | -20 °C to +60 °C |
| Power supply for electromagnetic valve | 24 V DC |
| Maximum working pressure | 5 bar |
| Weight (without filter element) | ≈ 9.3 kg |
Remove the probe according to Chapter 4, loosen the clamp holding the filter, replace the filter element, and re‑secure the clamp as described in Chapter 5.4.
Dry gas meeting PNEUROP/ISO class 4 specifications must be used for back‑blow.
