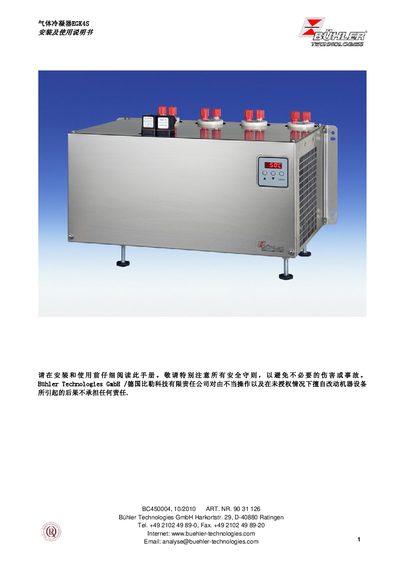

Installation and operating instructions for gas condenser EGK 4S
The EGK4S gas condenser is designed for gas analysis systems, providing cooling and condensation of sample gases. It must be installed and operated according to the specifications and safety guidelines outlined in this document.
The manual covers safety notices, installation and electrical connections, operation and menu functions, maintenance, fault troubleshooting, and end‑of‑life disposal. It also includes technical specifications and ordering information for accessories. This manual is written in Chinese.
| Operating preparation time | Maximum 15 minutes |
|---|---|
| Cooling capacity (25 °C) | 800 kJ/h |
| Ambient temperature range | +5 °C to +50 °C |
| Factory‑set dew point | Approximately 5 °C |
| Power supply | 115 V or 230 V, 50/60 Hz |
| Power consumption | 170 VA / 500 VA |
| Fuse rating | 10 A |
| Alarm output | 230 V AC / 150 V DC, 2 A, 30 VA |
| Protection class | IP20 |
| Dimensions (W×D×H) | ≈ 510 × 355 × 450 mm |
| Weight (incl. 4 heat exchangers) | ≈ 32 kg |
The device may be used in ambient temperatures from +5 °C to +50 °C.
A 10 A fuse is specified for the power supply.
Installation must be performed by qualified personnel, following all safety instructions, ensuring proper ventilation, and using original parts only.
