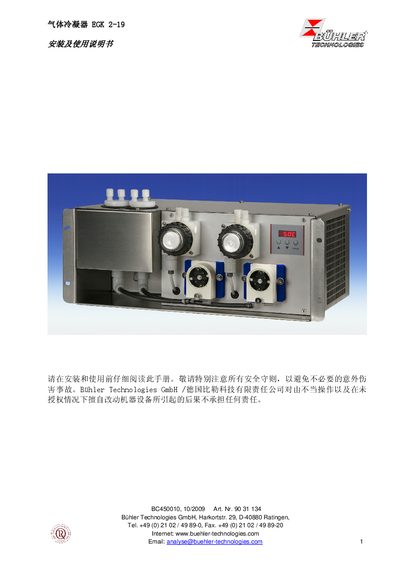

Instruction manual for gas condenser EGK 2-19, this manual mainly introduces the installation, use, maintenance and troubleshooting of gas condenser EGK 2-19.
The EGK 2-19 gas condenser is designed for gas‑analysis pre‑treatment, removing moisture from sample gas before it reaches the analyzer. The manual provides a complete overview of the device, safety requirements, transport, storage, installation, wiring, operation, maintenance, service, disposal and fault handling.
The guide details the required installation space, environmental limits, optional accessories such as peristaltic pumps, filters and humidity detectors, and explains the menu‑driven user interface, signal outputs and configuration of temperature and alarm set‑points. This manual is written in Chinese.
| Cooling capacity | 320 kJ/h |
|---|---|
| Operating temperature range | +5 °C … 50 °C |
| Power supply | 115 V or 230 V, 50/60 Hz |
| Maximum filter pressure | 2 bar |
| Maximum peristaltic pump pressure | 0.5 bar |
| Signal output (temperature) | 4‑20 mA, –20 °C … +50 °C |
The filter may be operated up to a maximum pressure of 2 bar.
The condenser provides a 4‑20 mA analog output that represents the measured temperature from –20 °C to +50 °C.
