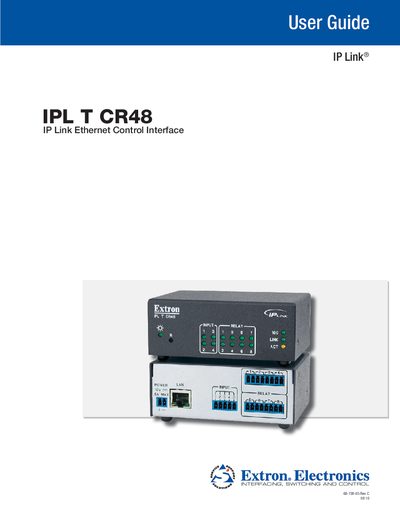

This manual provides instructions for operating and maintaining the IP Link Ethernet Control Interface.
The IPL T CR48 is a 1U Ethernet controller that can be used in distributed control systems or as a stand‑alone device to link legacy equipment to IP‑based networks. It features contact‑closure inputs, relay outputs, a web‑based interface, and support for multiple network protocols.
This guide covers safety instructions, mounting options, wiring, hardware connections, configuration steps, communication methods, troubleshooting, and warranty information to help users install and operate the device safely and effectively.
Read and understand all safety and operating instructions before using the equipment.
Remove all power cords from the rear of the equipment or from the detachable desktop power module.
It provides an RJ‑45 auto‑sense 10/100 Mbps Ethernet LAN connection.
The device supports Telnet, SMTP, ICMP, ARP, and DHCP.
