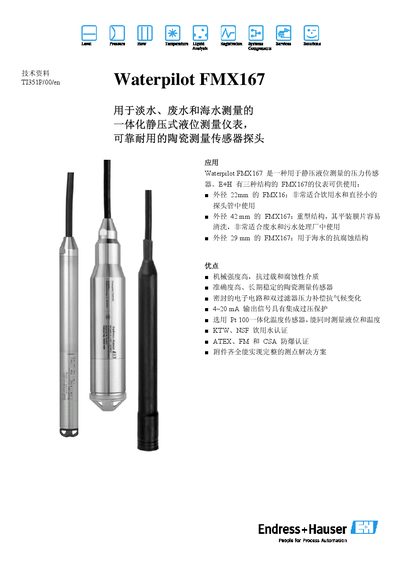

Waterpilot FMX167 is a pressure transmitter for static liquid level measurement. E+H offers FMX167 instruments in three different housings: the FMX16 with a diameter of 22 mm is ideal for drinking water and small diameter probe tubes; the heavy-duty FMX167 with a diameter of 42 mm has a flush-mounted diaphragm that is easy to clean and is therefore ideal for use in wastewater and sewage treatment plants; the FMX167 with a diameter of 29 mm is for use in seawater and has a corrosion-resistant housing.
The FMX167 Waterpilot is a static pressure level sensor designed for fresh water, wastewater and seawater applications. It offers three probe diameters (22 mm, 42 mm, 29 mm) with robust ceramic diaphragms, high mechanical strength and corrosion resistance.
The sensor provides a 4‑20 mA output, optional integrated Pt‑100 temperature measurement, and complies with ATEX, FM and CSA explosion‑proof certifications. It can be combined with E+H power supplies, transmitters and monitoring devices for complete measurement solutions. This manual is written in Chinese.
| Maximum overload pressure | 40 bar (580 psi) |
|---|---|
| Power supply voltage | 10‑30 VDC |
| Output signal | 4‑20 mA |
It operates from a 10‑30 VDC power supply.
The sensor outputs a standard 4‑20 mA current signal.
