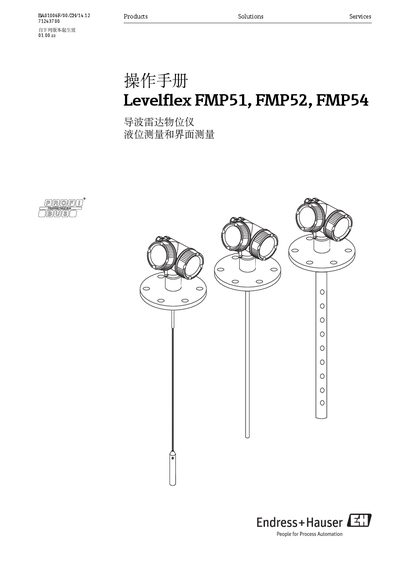

Operation manual for the Endress+Hauser Levelflex FMP51/52/54 guided wave radar level transmitters covering safety, installation, wiring, operation and…
This manual provides comprehensive information for the entire lifecycle of the Levelflex FMP51, FMP52 and FMP54 guided wave radar level transmitters. It includes product identification, receipt inspection, storage, installation, electrical connection, operation, debugging, troubleshooting, maintenance and disposal procedures.
Safety guidelines, detailed installation dimensions, wiring options (including PROFIBUS PA and HART), over‑voltage protection, and integration into PROFIBUS networks are described. The document also contains extensive menus for device configuration, diagnostic information, and a parts list for service and replacement. This manual is written in Chinese.
| Channel impedance | 2 × 0.5 Ω max |
|---|---|
| DC voltage range | 400–700 V |
| Pulse voltage limit | < 800 V |
| Surge absorption | 10 kA |
| Over‑voltage protection standard | DIN EN 60079‑14 |
It supplies all information needed throughout the device’s lifecycle, from product identification and receipt inspection to storage, installation, wiring, operation, debugging, troubleshooting, maintenance and disposal.
