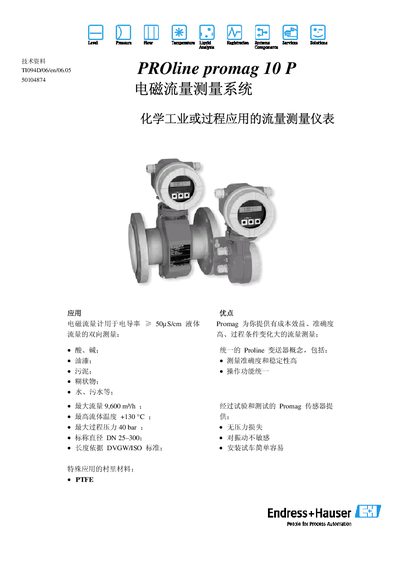

Promag 10 P electromagnetic flow measurement system is a bidirectional measurement instrument for liquids with electrical conductivity of ≥ 50µS/cm. It has high measurement accuracy, unified operating functions, maximum flow rate of 9,600 m³/h, maximum fluid temperature of +130 °C, maximum process pressure of 40 bar, nominal diameter of DN 25–300 and length according to DVGW/ISO standards.
The PROline Promag 10 P is an electromagnetic flow measurement system designed for chemical and process applications. It supports liquids with conductivity ≥ 50 µS/cm and offers bidirectional flow measurement for a wide range of media such as acids, bases, paints, sludge, pastes, water and wastewater.
The system combines a transmitter and sensor in either an integrated or split configuration, provides isolated 4‑20 mA current output, pulse and status outputs, and meets multiple international certifications (CE, C‑tick, ATEX, FM, CSA). Installation guidelines, cable specifications, and grounding recommendations are included to ensure accurate and reliable operation. This manual is written in Chinese.
| Maximum flow | 9,600 m³/h |
|---|---|
| Maximum fluid temperature | +130 °C |
| Maximum process pressure | 40 bar |
| Nominal pipe diameter | DN 25–300 |
| Power consumption (85–250 V AC) | < 12 VA (including sensor) |
| Cable operating temperature range | –20 °C to +80 °C |
The cables are rated for –20 °C to +80 °C.
