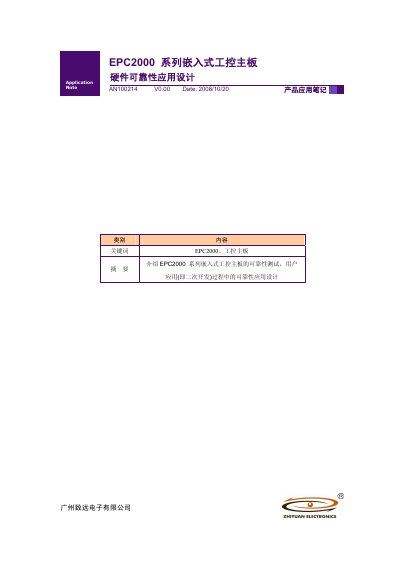

Introduction of EPC2000 series embedded industrial control board reliability testing, user application (ie secondary development) process reliability application design
The EPC2000 series embedded IPC motherboard is designed for industrial environments with a focus on electromagnetic compatibility and rigorous production testing. This document outlines the reliability tests performed, such as high/low temperature shock, vibration, and electro‑static discharge, and provides design recommendations to ensure stable operation.
Key reliability design topics include proper power supply selection, chassis grounding, connector mismatch prevention, and I/O port opto‑isolation. The note also lists the six product variants (EPC‑2600, EPC‑2601, EPC‑2602, EPC‑2900, EPC‑2901, EPC‑2903) and provides a disclaimer regarding the scope of the provided templates and driver support. This manual is written in Chinese.
| Recommended Power Current | ≥1.5 A |
|---|---|
| I/O Channels | 8 (4 digital inputs, 4 digital outputs) |
| Maximum Output Current per I/O | 24 mA |
| Total I/O Output Current | ≤80 mA |
The board provides eight I/O ports: four buffered digital inputs and four buffered digital outputs.
A power supply capable of delivering at least 1.5 A is recommended.
