XGate-DPS PROFIBUS embedded slave module is suitable for self-developed PROFIBUS-DP slave device, and does not need to master the PROFIBUS-DP related theoretical knowledge. XGate-DPS10 supports up to 12Mbps communication rate, integrates enhanced ESD protection, and can protect user devices from working reliably in the network. Users can access the XGate-DPS10 module via the serial UART/SPI interface to realize high-speed real-time data transmission.
The XGate‑DPS series provides a compact PROFIBUS‑DP slave solution for developers who need to create their own field devices without deep protocol knowledge. The module supports up to 12 Mbps communication speed, enhanced ESD protection, and can be accessed via UART or SPI for fast real‑time data transfer.

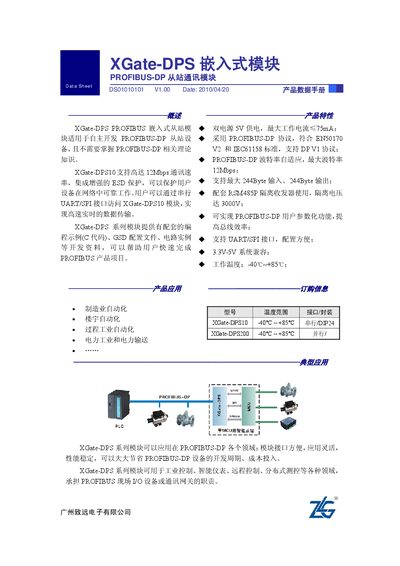

Typical applications include industrial control, smart instrumentation, remote monitoring and distributed measurement systems. The data sheet includes hardware pin‑out, electrical parameters, GSD file information and example code to accelerate development. This manual is written in Chinese.
| Maximum communication rate | 12 Mbps |
|---|---|
| Supported interfaces | UART, SPI |
| Operating temperature range | -40 °C to +85 °C |
| Isolation voltage | 3000 V |
| Maximum I/O size | 244 Byte input, 244 Byte output |
| Package | DIP24 |
| Supply voltage | 3.3 V‑5 V |
| Maximum working current | 73 mA |
It supports a maximum communication speed of 12 Mbps.
The module provides UART and SPI interfaces for configuration and data transfer.
The module operates from –40 °C to +85 °C.
It offers isolation up to 3000 V.
