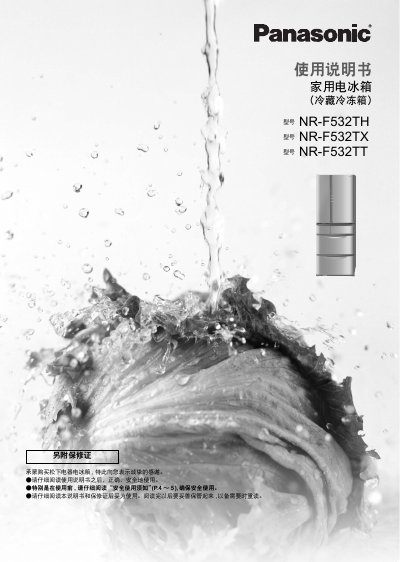

This document is a user manual for a household refrigerator, which introduces the features and usage methods of Panasonic refrigerators.
This manual provides safety guidelines, installation steps, and daily usage instructions for the Panasonic NR‑F532TH/NR‑F532TX/NR‑F532TT household refrigerator. It covers preparation, clever usage methods, cleaning procedures, and troubleshooting tips.
Technical specifications, circuit diagram, warranty information and service contacts are included to help users maintain optimal performance and resolve common issues. This manual is written in Chinese.
| Total capacity | 426 L |
|---|---|
| Freezer capacity | 77 L |
| Refrigerator capacity | 253 L |
| Switch compartment capacity | 19 L |
| Fruit/vegetable compartment capacity | 77 L |
| Rated voltage | 220 V |
| Rated frequency | 50 Hz |
| Freezing capacity | 6.5 kg/24 h |
| Rated current | 1.1 A |
| Lamp maximum power | 2 W |
| Defrost power | 210 W |
| Energy consumption | 1.70 kWh/24 h |
| Energy efficiency class | 4 |
| Refrigerant | R600a (70 g) |
| Noise level | 42 dB(A) |
| Weight | 89 kg |
| Dimensions (W×D×H) | 685 mm × 699 mm × 1798 mm |
Read the safety instructions section of the manual before operating the unit.
Unplug the refrigerator, wait at least 10 minutes, then plug it back in.
Place it on a flat, sturdy floor away from heat sources and direct sunlight, with adequate ventilation.
Yes, it is normal and caused by the variable‑frequency control adjusting the compressor speed.
