This is a rectangular two-in-one rotary potentiometer with high tactile feedback. It can be used for audio equipment, video equipment and electronic musical instruments.

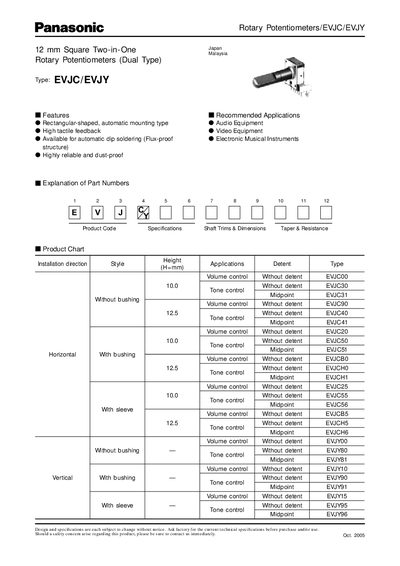

This data sheet covers the Panasonic EVJC/EVJY series of 12 mm square two‑in‑one rotary potentiometers. It lists key mechanical and electrical specifications, recommended applications such as audio, video, and electronic musical equipment, and includes mounting directions and circuit diagrams.
The document also provides detailed dimension drawings, PWB piercing plans, and part‑number explanations for both volume and tone control variants, helping designers select the appropriate taper and resistance values for their designs.
| Rotation Angle | 300° |
|---|---|
| Rotation Torque | 2 mN·m to 20 mN·m |
| Shaft Stopper Strength | 0.5 N·m min. |
| Mechanical Shaft Pull/Push Strength | 80 N min. |
| Dielectric Withstand Voltage | 300 Vac for 1 min |
| Noise Level | 47 mV max. |
The rotation angle is 300°.
