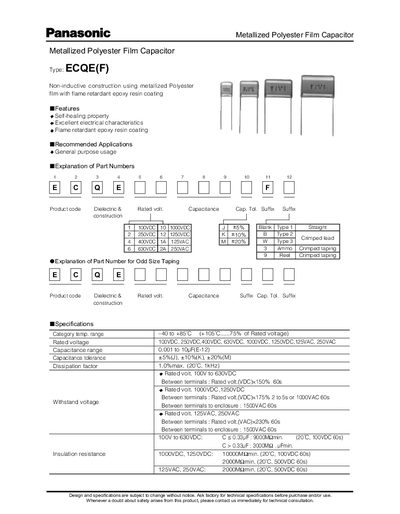

This document is about the introduction of the Metallized Polyester Film Capacitor, which introduces the characteristics of the capacitor, including self-healing property, excellent electrical characteristics and flame retardant epoxy resin coating, etc. Suitable for general purpose.
The Panasonic ECQE(F) series are metallized polyester film capacitors offering self‑healing construction and flame‑retardant epoxy coating. They are suited for general‑purpose applications and noise‑suppression across a wide voltage range.
Available in rated voltages from 100 VDC up to 1250 VDC (including 125 VAC and 250 VAC), capacitance values from 0.001 µF to 10 µF, and tolerance codes J, K, M. Detailed dimensions, packaging options and electrical characteristics such as dissipation factor and insulation resistance are provided in the tables.
| Rated voltage | 100VDC, 250VDC, 400VDC |
|---|---|
| Capacitance range | 0.001 to 10µF |
| Capacitance tolerance | +5% (J), +10% (K) |
| Dissipation factor | 1.0% max (20°C, 1kHz) |
| Withstand voltage | 100V to 630VDC |
They feature a self‑healing property.
General purpose usage is recommended.
Capacitance tolerances are +5% (J), +10% (K), and +20% (M).
Rated voltages include 100VDC, 250VDC, 400VDC, 630VDC, 1000VDC, 1250VDC, 125VAC and 250VAC.
