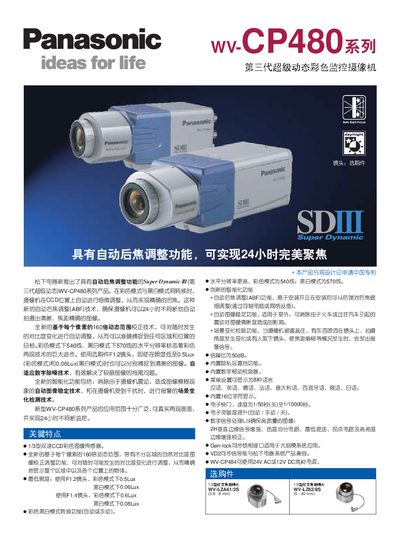

The WV-CP480 series is a line of Super Dynamic III surveillance cameras with auto back focus adjustment feature introduced by Panasonic. It features a 1/3-inch dual-speed CCD color image sensor with 160x dynamic range correction technology and adaptive digital noise reduction. The product offers intelligent functions such as auto back focus adjustment, auto image stabilization, and scene change detection, making it suitable for 24-hour monitoring. It has a horizontal resolution of 540 lines (color mode) and 570 lines (black and white mode).
This manual describes the key features of the Panasonic WV-CP480 series, including automatic back‑focus adjustment, auto image stabilization, scene‑change detection, and multilingual menu support. It also lists optional lenses such as the 1/3" 3.8‑8 mm WV‑LZA61/2S and 5‑40 mm WV‑LZ62/8S.
Technical specifications are detailed, covering resolution, sensitivity, power options, environmental limits, dimensions, and connector types. Installation notes, wiring diagrams, and recommended accessories are included to help set up the camera for 24‑hour continuous monitoring. This manual is written in Chinese.
| Color resolution | 540 lines |
|---|---|
| Black‑white resolution | 570 lines |
| Signal‑to‑noise ratio | 50 dB |
| Dynamic range (typical) | 52 dB |
| Minimum illumination (color, F1.2 lens) | 0.5 Lux |
| Minimum illumination (black‑white, F1.2 lens) | 0.06 Lux |
| Power consumption | 4.6 W (220‑240 V, 50 Hz) |
| Operating temperature | -10 °C to +50 °C |
| Dimensions (W×H×D, without lens) | 70 mm × 65 mm × 129 mm |
| Weight (without power cable) | 520 g |
The camera can capture color images at a minimum illumination of 0.5 Lux when using an F1.2 lens.
The menu can be displayed in eight languages: Chinese, English, German, French, Italian, Spanish, Russian, and Japanese.
The camera has a signal‑to‑noise ratio of 50 dB.
The WV‑CP484 can be powered by either 24 V AC or 12 V DC.
