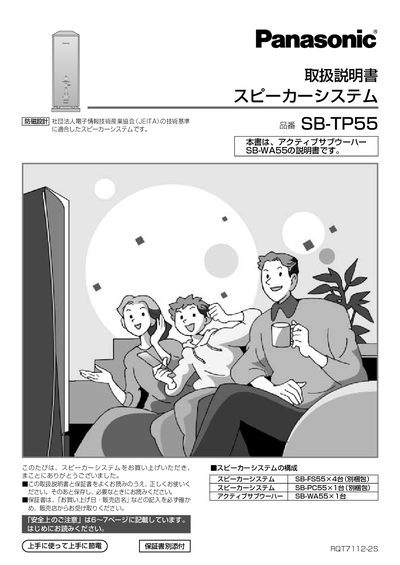

This manual describes how to use SB-WA55, including safety precautions, product composition, how to connect, and how to place.
This manual explains how to set up the SB‑TP55 speaker system, including placement of front, center, surround speakers and the SB‑WA55 active subwoofer. It gives recommended distances, mounting tips, and cautions about magnetic interference with nearby TVs.
It also covers connection procedures, power‑on steps, adjustment of volume, phase, and low‑pass filter settings, as well as safety warnings, warranty information, and maintenance guidelines. This manual is written in Japanese.
| Output SPL | 80 dB/W (1.0 m) |
|---|---|
| Frequency Range | 3 Hz – 20 kHz (±16 dB) |
| Rated Power Output | 100 W |
| Phase Switch | NORMAL / REVERSE |
| Low‑Pass Filter | 50 Hz – 200 Hz (continuous variable) |
| Power Consumption | 140 W |
| Dimensions (W×H×D) | 168 mm × 457 mm × 420 mm |
| Weight | ≈10.8 kg |
Place the subwoofer at least 5 cm away from the wall; the distance affects low‑frequency response, and placing it in a corner can increase volume.
Turn the TV off, wait 10–15 minutes, then turn it back on; if the distortion remains, move the speakers farther away from the TV.
