The EXC28CE series is a small array common mode noise filter with 2 built-in filters. It is used to eliminate radiation noise of various high-speed differential transmissions. The product adopts an electromagnetic shielding structure, which eliminates leakage magnetic flux and has high mounting reliability. It is lead-free, halogen-free and antimony-free, and is widely used in anti-interference measures for data lines of circuit-mounted devices such as computers and TVs.
The EXC28CG series is a compact, thin array‑type common‑mode noise filter designed to suppress electromagnetic interference in high‑speed differential transmission lines. It is intended for equipment equipped with HDMI interfaces such as TVs, set‑top boxes, DVD players, and digital camcorders, as well as for computers and HDDs with SATA interfaces.

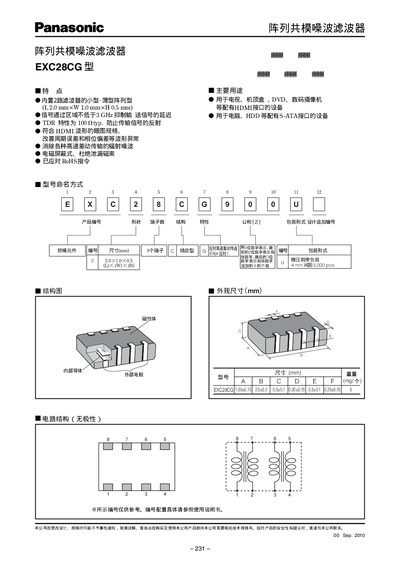

Key features include a low‑profile design (2.0 mm × 1.0 mm × 0.5 mm), TDR characteristic of 100 ps to prevent signal reflection, compliance with HDMI eye‑pattern specifications, and RoHS‑compliant electromagnetic shielding. Electrical specifications cover common‑mode impedance, rated voltage, and operating temperature range. This manual is written in Chinese.
| Operating temperature range | -40 °C to +85 °C |
|---|
The filter operates from –40 °C up to +85 °C.
