EXC28CH array common mode noise filter is used for anti-interference measures of high-speed transmission circuits in digital audio-visual equipment, information processing equipment and communication equipment.

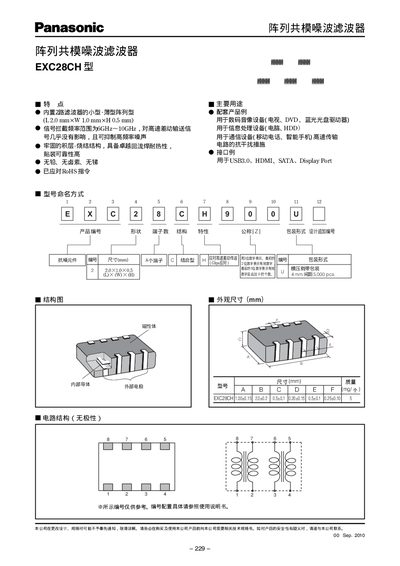

The EXC28CH900U is an array‑type common‑mode noise filter designed for digital audio‑video equipment, information‑processing devices and communication equipment. It features a solid sintered structure that is lead‑free, halogen‑free and antimony‑free, making it suitable for high‑speed differential transmission circuits and reflow‑soldering environments.
The filter is supplied in molded tape packaging, includes 19 terminals, and operates over a temperature range of –40 °C to +85 °C. Its specifications cover impedance, DC resistance, rated current, rated voltage and signal‑attenuation characteristics across a wide frequency range. This manual is written in Chinese.
| Temperature range | -40°C to +85°C |
|---|---|
| Package type | Molded tape packaging |
| Signal attenuation at 100 MHz | -4 dB |
It operates from –40 °C to +85 °C.
It is supplied in molded tape packaging.
