EXC18CG/CE is a small, high-Q array common-mode noise filter with excellent heat resistance during reflow soldering, a strong multilayer sintered structure, and two built-in filters. It is mainly used for anti-interference measures of high-speed data lines such as mobile phones, digital cameras, laptops, and digital displays.
The EXC18CG/CE series is a compact, thin‑profile array common‑mode noise filter designed to suppress high‑speed differential transmission noise with minimal impact on signal integrity. It is intended for use in mobile phones, digital cameras, laptops, digital displays and for high‑speed data lines such as USB, LVDS and HDMI.

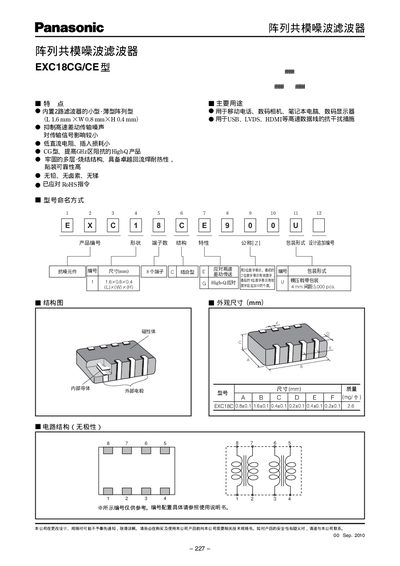

The filter features a low DC resistance and insertion loss, a high‑Q design for the GHz band, and a lead‑free, halogen‑free construction compliant with RoHS. Physical dimensions are 1.6 mm × 0.8 mm × 0.4 mm, with eight terminals and a multilayer sintered structure for reliable soldering. Electrical specifications include impedance values from 43 Ω to 200 Ω at 100 MHz, rated voltages of 15‑22 VDC, and a temperature range of –40 °C to +85 °C. This manual is written in Chinese.
| Operating Temperature Range (°C) | -40 to +85 |
|---|
The filter can operate from –40 °C to +85 °C.
