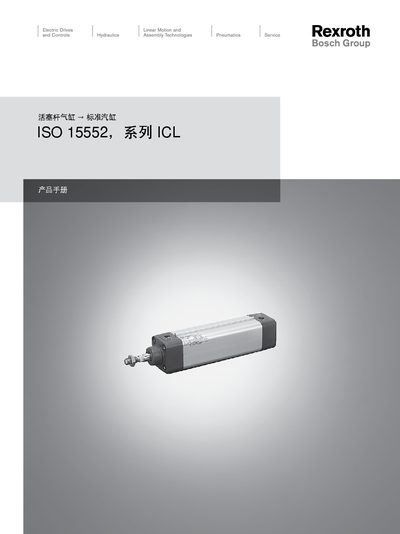

This manual introduces the ISO 15552 standard cylinder ICL series of cylinder products, including the size, interface, type, buffer, piston rod and other information.
This guide provides essential information for the Bosch Rexroth ICL series piston‑rod cylinders. It includes technical data, dimensional tables, pressure and temperature limits, and ordering codes.
The document also lists contact details for Bosch Rexroth Pneumatics sales and service, and contains legal notices about the use of the data.
| Pressure rating | 1.5 bar – 10 bar |
|---|---|
| Operating temperature range | -25 °C – 470 °C |
| Bore size range | 32 mm – 125 mm |
The ICL series cylinders are rated for pressures from 1.5 bar up to 10 bar.
They can be used from –25 °C to 470 °C.
