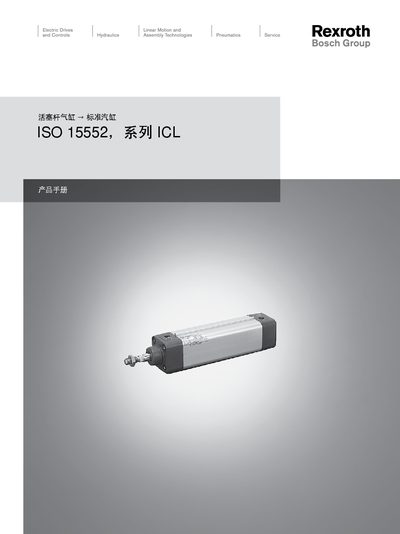

This guide describes the ICL series piston‑rod pneumatic cylinders produced by Bosch Rexroth. It includes technical data, dimensional tables, and reference information required for selection, installation, and maintenance.
Key data such as pressure range, operating temperature, bore sizes and stroke lengths are listed, together with contact details for further support. The document follows the ISO 15552 standard for pneumatic cylinders.
| Pressure range | 1.5 bar – 10 bar |
|---|---|
| Operating temperature | -25 °C – 470 °C |
| Bore sizes | 32 mm, 40 mm, 50 mm, 63 mm, 80 mm |
| Maximum speed | 50 mm/s |
The cylinder operates between 1.5 bar and 10 bar.
It can be used from –25 °C up to 470 °C.
Available bore diameters are 32 mm, 40 mm, 50 mm, 63 mm and 80 mm.
