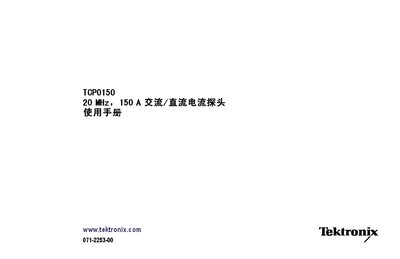

The TCP0150 is a 20 MHz bandwidth, 150 A AC/DC current probe designed for use with oscilloscopes and other test equipment. The manual covers safety guidelines, probe principle, measurement techniques, and performance verification.
Key sections include safety overviews, attachment options, detailed instructions for device setup, DC gain accuracy, rise time and bandwidth, as well as maintenance procedures such as disassembly, reassembly, and replacement of parts. This manual is written in Chinese.
| Bandwidth | 20 MHz |
|---|---|
| Maximum Continuous Current | 150 A |
Tektronix guarantees the product against material and workmanship defects for one year from the date of shipment.
Sensitivity can be increased by following the procedures described in the “提高探头灵敏度” section of the manual.
Users should review the “常规安全概要” and “维修安全概要” sections for general and service safety guidelines.
