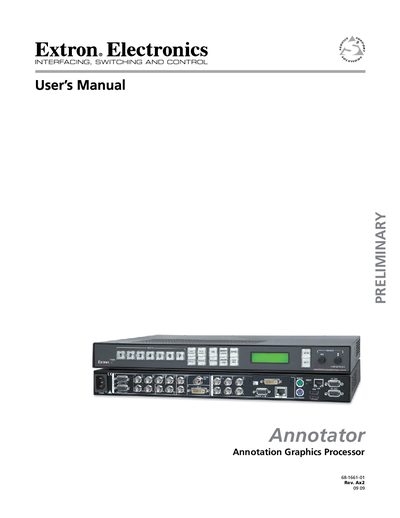

This document describes important operating and maintenance instructions for the Annotator Annotation Graphics Processor 68-1661-01 Rev. Ax2 09 09 PRELIMINARY PRELIMINARY, as well as a warning about the risk of electric shock. The document emphasizes the importance of reading and understanding the instructions, retaining the safety instructions for future reference, and following all warnings and instructions. Additionally, the document mentions the importance of using the correct power source, safely disconnecting power, and protecting power cords.
This manual introduces the Extron Annotator graphics processor, covering safety requirements, mounting, rear‑panel connections, and power‑up procedures. It also explains front‑panel operation, advanced configuration, and networking setup for Ethernet and RS‑232 communication.
Detailed chapters guide users through menu navigation, preset management, SIS programming, and service procedures, while appendices supply reference information, Ethernet configuration, and warranty details.
| Default IP address | 192.168.254.254 |
|---|---|
| Lithium battery safety | Explosion risk if battery is incorrectly replaced |
