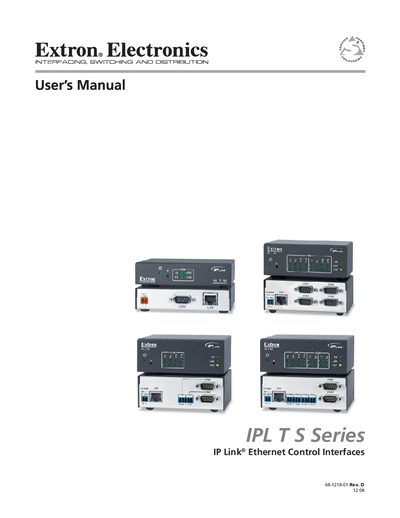

This manual introduces the usage instructions of IPL TS Series IP Link® Ethernet Control Interfaces product.
The IPL T S Series from Extron integrates Ethernet connectivity into audio/video (A/V) systems, allowing remote monitoring and control of projectors, displays, switchers, and other serially‑controlled devices. The series includes several models (T S1, T S2, T S4, T S6) with varying numbers of RS‑232/RS‑422/RS‑485 ports.
This manual covers safety precautions, mounting options, power and Ethernet connections, serial interface wiring, default network settings, configuration via Global Configurator or embedded web pages, and detailed specifications. It also includes a quick‑start guide, glossary, and part‑number list for accessories.
