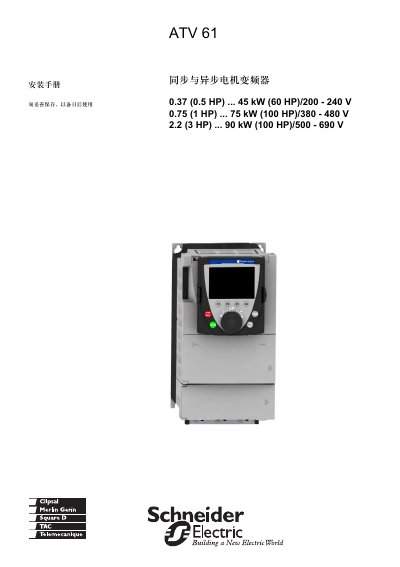

This document provides important safety information for the Schneider ATV61 inverter, including symbols that indicate potential hazards such as death or serious injury. It explains the required precautions before installation, operation, or maintenance, and stresses the need to disconnect all power sources and use lock‑out tags.
The guide details the installation conditions, mounting options (wall‑mounted or floor‑mounted), wiring connections for power and control terminals, EMC board installation, and recommended procedures for testing and commissioning the drive. Packaging handling and model‑specific notes are also included. This manual is written in Chinese.
| Power Rating 0.5 HP | 45 kW (60 HP) / 200‑240 V |
|---|---|
| Power Rating 1 HP | 75 kW (100 HP) / 380‑480 V |
| Power Rating 3 HP | 90 kW (100 HP) / 500‑690 V |
The symbols warn of potential death hazards, serious injury, or other safety risks that must be observed during installation, operation, or maintenance.
The drive can be installed either wall‑mounted or floor‑mounted as shown in the installation diagrams.
