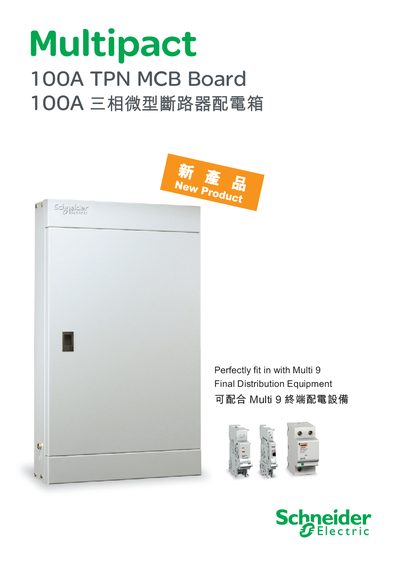

This document describes the Multipact 100A TPN MCB Board, which is a three-phase miniature circuit breaker distribution board that perfectly fits in with Multi 9 final distribution equipment. The board is made of galvanized 1.2mm steel sheet with a high-quality epoxy powder surface coating and has an IP41 degree of protection. It has a busbar rating of 100A and a short circuit breaking capacity of 24kA. The board also includes a main switch connection bar and an earth link for the hinge door.
The Schneider Electric Multipact 100A TPN MCB Board is a three‑phase miniature circuit breaker distribution box designed to integrate with Multi 9 final distribution equipment.
It operates on 415 V AC, meets IEC60439‑1 and BSEN 60439‑1 standards, and offers an IP41 protection rating. The board features a 100 A busbar rating, 24 kA short‑circuit breaking capacity, surface‑mounting enclosure made from 1.2 mm galvanized steel with epoxy coating, and dimensions ranging from 340 mm to 826 mm in length. This manual is written in Chinese.
| Power supply | 415V AC |
|---|---|
| Busbar rating | 100A |
| Short circuit breaking capacity | 24kA |
| Degree of protection | IP41 |
| Mounting type | Surface mounting |
| Compliance standards | IEC60439-1, BSEN 60439-1 |
| Material | Galvanized 1.2mm steel sheet |
The busbar rating is 100 A.
It can break short‑circuit currents up to 24 kA.
It complies with IEC60439‑1 and BSEN 60439‑1.
