EMP6 and BBD6 smoke emission monitors use the electrostatic charge sensing method to monitor the unknown components of smoke (powder) dust emissions. The monitor can be connected to other standard data display/transmitters that receive 4 ~ 20mA or 0-10V analog signals or AXD1 signal conversion cards. Then, the data processing is carried out by the computer microcomputer with the CONNECT or SPC software installed.

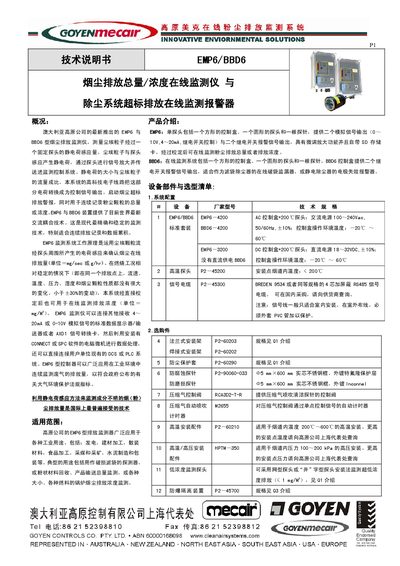

This manual provides a complete overview of the GOYEN EMP6/BBD6 emissions monitoring system, including system architecture, probe types, and typical industrial applications such as power generation, cement production and food processing. It describes how the electrostatic charge detection principle converts particle flow into a control signal for real‑time monitoring.
Detailed sections cover hardware installation, power supply options, probe calibration, alarm configuration, data logging, and self‑diagnostic procedures. Safety warnings, wiring diagrams, and troubleshooting tables help technicians ensure reliable operation in harsh industrial environments. This manual is written in Chinese.
| Probe protection rating | IP66/NEMA4, ATEX certified |
|---|---|
| Maximum duct pressure | 100 kPa (15 psi) |
When power is applied, EMP6/BBD6 automatically enters a self‑check cycle lasting about one minute, during which LED indicators flash to confirm normal operation.
