CS series multi-parameter sensor can simultaneously monitor conductivity, temperature, dissolved oxygen and PH value, with super annular surface conductivity sensor monitoring technology, microprocessor controlled temperature compensation technology, innovative optical isolation adjustment circuit, practical tested double platinum electrode, patented scattering rod sensor technology, software calibration and other advanced technical characteristics
The GOYEN CS304 and CS4-1200 are multiparameter sensors that measure conductivity, temperature, dissolved oxygen and pH. They feature a ring‑shaped conductivity sensor that reduces electrode corrosion and a patented scattering rod for stable linearity.

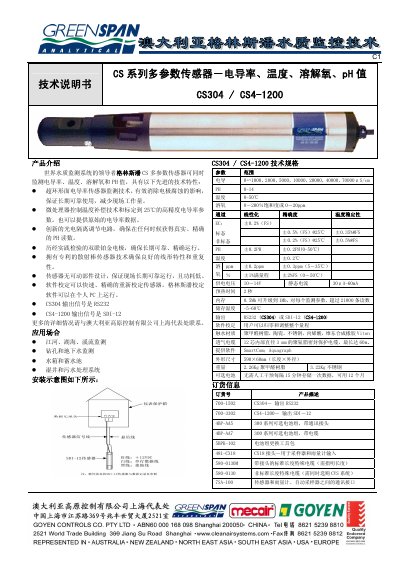

The manual provides technical specifications, ordering information, recommended installation cabling, and software tools (SmartCom, Aquagraph) for calibration and data management. Power can be supplied from 10 V to 24 V and the units can store data every 15 minutes for up to 12 months without human intervention. This manual is written in Chinese.
| Output signal (CS304) | RS232 |
|---|---|
| Output signal (CS4-1200) | SDI‑12 |
| Weight | 2.26 kg |
| Dimensions (L×Ø) | 590 mm × 60 mm |
The CS304 sensor outputs data via an RS232 interface.
It stores data every 15 minutes and can operate for up to 12 months without human interaction.
Calibration can be performed using the SmartCom or Aquagraph software on a PC.
