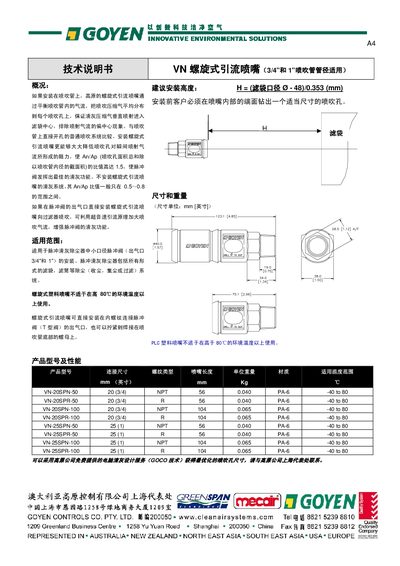

Gaoyuan VN Spiral Drainage Nozzle Datasheet

About this manual

The Gaoyuan VN spiral drainage nozzle is designed for pulse dust‑removal systems with 3/4" and 1" blow‑pipe diameters. By balancing the airflow inside the pipe, it distributes compressed air evenly to each blow hole, improving dust‑blowing efficiency and reducing resistance.

The document lists installation guidelines, dimensional data, applicable temperature range, material (PA‑6), and detailed model specifications such as nozzle length, weight and thread type for various VN‑20 and VN‑25 variants. This manual is written in Chinese.

What's inside

• Overview
• Installation Guidelines
• Dimensions and Weight
• Applicable Range
• Product Models and Performance

Frequently asked questions

What is the recommended installation height for the nozzle?

The recommended height is H = (filter bag diameter Ø – 48) / 0.353 (mm).

What An/Ap ratio can be achieved with the spiral drainage nozzle?

The nozzle can achieve an An/Ap ratio up to 1.5, compared with 0.5–0.8 for a plain blow‑pipe.

What is the maximum ambient temperature for using the plastic nozzle?

The plastic nozzle should not be used in environments above 80 °C.
