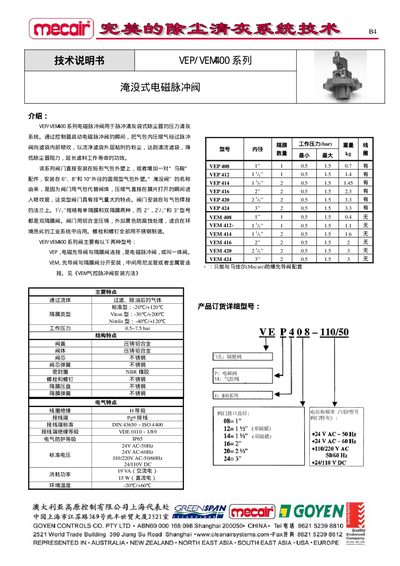

The VEP/VEM400 series submerged electromagnetic pulse valve is used for the pressure cleaning system of pulse cleaning bag dust collector. When the controller starts the electromagnetic pulse valve, the compressed air in the air bag passes through the pulse valve to the inside of the filter bag to clean the dust adhered to the outside of the filter bag, so as to clean the filter bag, reduce the resistance of the dust collector, and prolong the service life of the filter material.
The B4 VEP/VEM series pneumatic actuators are offered in multiple sizes (e.g., VEP 408, VEP 412, VEM 424) with standard operating pressures from 0.5 to 7.5 bar. The actuators feature an IP65 protection rating and are designed for 24 V AC power at 50/60 Hz.
Key dimensions, material specifications, and detailed part numbers are listed in the tables, providing the information needed for selection, installation, and maintenance of the devices. This manual is written in Chinese.
| Operating pressure | 0.5~7.5 bar |
|---|---|
| Power supply | 24 V AC‑50 Hz (also 24 V AC‑60 Hz, 110/220 V AC‑50/60 Hz, 24/110 V DC) |
They are rated for an operating pressure of 0.5 to 7.5 bar.
