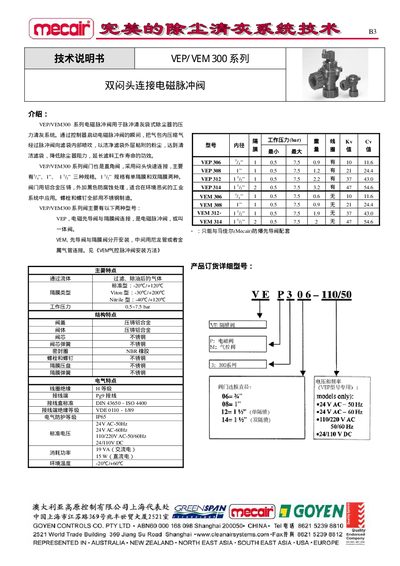

This technical manual introduces the features and characteristics of the VEP/VEM 300 series double muffler connected electromagnetic pulse valve, including its application in the pressure cleaning system of pulse-jet bag filter, specifications and structural features of the valve, electrical characteristics, and operating pressure range.
The VEP/VEM300 series from GOYEN are bag‑type filtration units designed for gas cleaning and oil‑free operation. The manual introduces the product line, model variants (VEP306, VEP308, VEP312, VEP314, VEM306, VEM308, VEM312, VEM314) and their key features.
The document includes technical specifications such as pressure and temperature ranges, power consumption, and electrical requirements, as well as a detailed parts diagram and part numbers for each model. Installation and maintenance notes are also provided to help users set up and service the units. This manual is written in Chinese.
| Working pressure | 0.5‑7.3 bar |
|---|---|
| Operating temperature range | -20 °C to +120 °C |
| Power consumption | 13 W |
| Supply voltage (AC) | 24 V AC‑60 Hz |
| Model range | VEP306‑VEP314, VEM306‑VEM314 |
The units operate at a pressure between 0.5 and 7.3 bar.
They can be used from –20 °C up to +120 °C.
Each unit consumes about 13 W of power.
