ASUS P8H61-I motherboard uses all-solid capacitor design, support Intel® K-Series unlocked multiplier processors, support dual-channel DDR3 1333, support Intel® HD Graphics 2000/3000, multiple VGA output options: D-sub, DVI-D and HDMI, 2 x USB 3.0 interface, 2 x SATA3 interface, support Turbo Boost Super Speed USB: The world's fastest USB, support graphical UEFI interface, AXTU, Instant Boot, Instant Flash, APP Charger, SmartView, combined heatsink option (C.C.O.), Micro ATX specification: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm

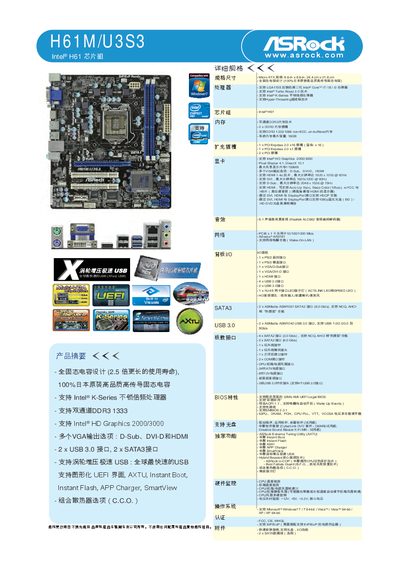

This manual describes the H61M/U3S motherboard’s hardware layout, including CPU socket support, memory slots, and expansion slots. It also outlines the integrated graphics capabilities, audio codec, and networking features.
The document details the UEFI BIOS interface, SmartView utilities, and Turbo Boost USB technology, as well as the supported operating systems and driver software bundles included on the disc. This manual is written in Chinese.
| Memory Type | DDR3 1333/1066 non‑ECC, un‑buffered |
|---|---|
| Maximum Memory Capacity | 16 GB |
| USB 3.0 Ports | 2 |
| SATA3 Ports | 2 |
The board provides two USB 3.0 ports.
It supports up to 16 GB of DDR3 memory.
