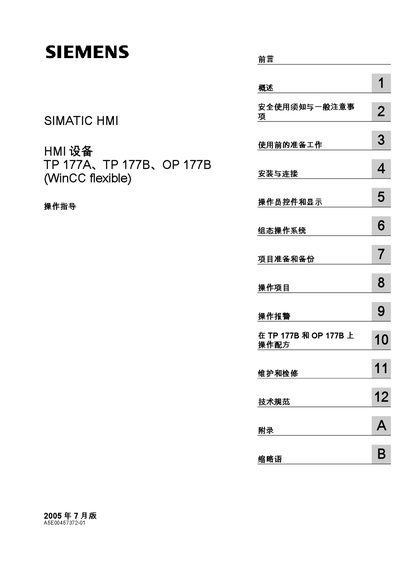

This manual provides operating instructions for the Siemens TP 177A, TP 177B, OP 177B (WinCC flexible) operator control consoles, introducing the features and characteristics of the products, installation, connection, configuration of the operating system, project preparation and backup, project operation, alarm operation, recipe operation, maintenance and repair, etc.
This manual provides safety instructions, installation and wiring details, and operating procedures for the SIMATIC TP 177A, TP 177B and OP 177B HMI panels. It is intended for users, commissioning engineers, service technicians and maintenance personnel.
The guide also describes the WinCC flexible software functions, project preparation, backup, alarm handling, recipe operation and technical specifications of the devices. This manual is written in Chinese.
| Discrete alarm count (TP 177A) | 1000 |
|---|---|
| Analog alarm count (TP 177A) | 20 |
| Alarm text length | 80 characters |
| Variable number (TP 177A) | 500 |
| Screen objects per screen (TP 177A) | 30 |
It marks personal safety warnings that could cause death or serious injury.
