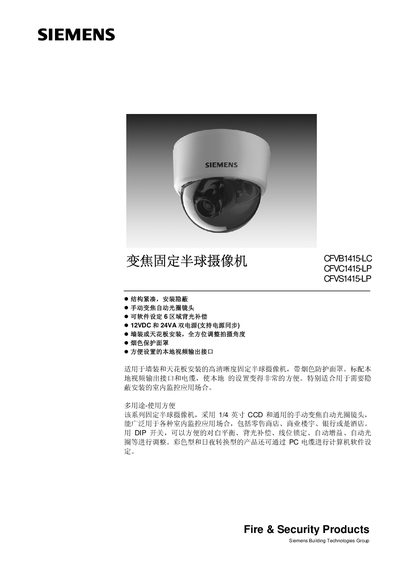

The zoom fixed dome camera CFVB1415-LC CFVC1415-LP CFVS1415-LP adopts a 1/4 inch CCD and a universal manual zoom auto iris lens, which can be widely used in various indoor monitoring applications, including retail stores, commercial buildings, banks or hotels. DIP switches can be used to conveniently adjust white balance, backlight compensation, line lock, automatic gain, and automatic aperture. Color and day-night conversion products can also be set by a PC cable for computer software.
The CFVB1415 series are compact, fixed‑hemisphere camcorders designed for discreet wall or ceiling mounting in indoor surveillance applications. They feature a manual‑zoom, auto‑aperture lens and optional software‑adjustable backlight compensation.
This manual includes product dimensions, electrical and mechanical characteristics, video output options, lens specifications, and ordering information, helping installers configure power, mounting, and image settings quickly. This manual is written in Chinese.
| Horizontal resolution | 580 TV lines |
|---|---|
| Minimum illumination (colour) | 0.34 Lux |
| Operating voltage | 12VDC / 24VAC |
| Dimensions (W×H) | 112 x 97.5 mm |
| Lens focal length | 2.8~5.8 mm |
| Aperture (F‑number) | F1.4~ 360 |
| Viewing angle | 38.2 ~ 76.72° |
The camera can be powered by either 12 VDC or 24 VAC, with dual‑power and synchronization capability.
Yes, it is designed for wall or ceiling mounting with full‑angle adjustment.
Software allows configuration of up to six backlight‑compensation zones.
The colour model works down to 0.34 Lux.
