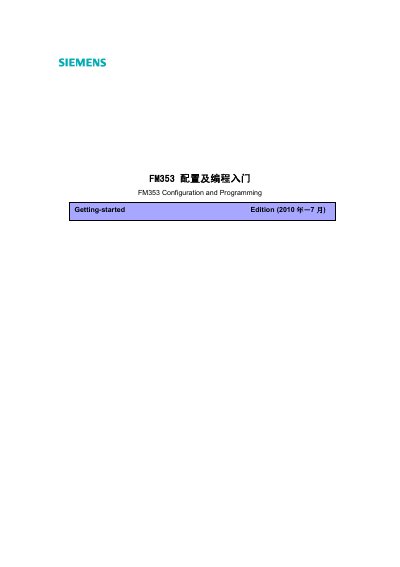

This document provides an introduction to the configuration and programming of FM353, a positioning module used for controlling stepper motors. It covers topics such as hardware wiring, parameter configuration, control panel debugging, and programming.
The document provides detailed instructions for wiring the FM353, including pin assignments, signal definitions, and power requirements. It describes the X2 interface, the meaning of each pin (PULSE, ENABLE, PWM/BOOST, etc.) and the voltage levels used.
It also covers parameter configuration steps, control‑panel operation modes, and safety notices. Users are guided through installing the FM353/FM354 hardware package, accessing the STEP7 software, and entering the required parameters for proper operation. This manual is written in Chinese.
The PULSE pin outputs a signal.
