CCBC1345 is a high-resolution color camera with 480 TVL resolution. It uses the latest CCD technology and digital signal technology to provide clear and sharp images. The camera features high clarity, easy setup, and line lock functionality.
The CCBC1345 is a 1/3‑inch high‑resolution color camcorder offering 480 TVL video output and adjustable aperture. It uses a CCD sensor and digital signal processing to deliver clear images for surveillance applications.

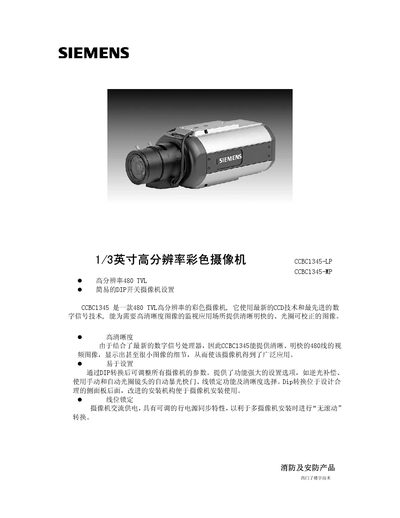

The manual describes DIP‑switch configuration, power options (12 VDC/24 VAC for LP, 100‑240 VAC for MP), lens control, and mounting instructions, along with full technical parameters such as resolution, illumination, and environmental limits. This manual is written in Chinese.
| TV Standard | 625 line, PAL 50 Hz |
|---|---|
| Image Sensor | 1/3 inch CCD, 752 × 582 effective pixels |
| Horizontal Resolution | 480 TVL |
| Minimum Illumination | 0.6 Lux (F1.2, AGC 38 dB, 50 IRE) |
| Power Supply (LP) | 12 VDC or 24 VAC |
| Power Supply (MP) | 100‑240 VAC +10 % |
| Power Consumption | 2.8 W |
| Operating Temperature | -10 °C to +50 °C |
| Dimensions (L×W×H) | 122 × 72 × 63 mm |
The camera needs at least 0.6 Lux (F1.2, AGC 38 dB, 50 IRE) to produce a usable image.
The LP version can be powered by either 12 VDC or 24 VAC.
The video output is a 1 Vpp composite signal with a 75 Ω BNC connector.
