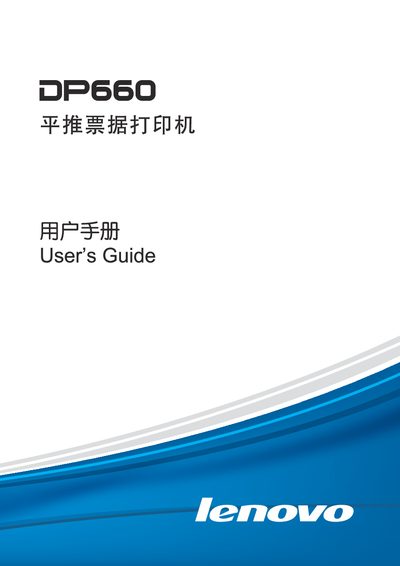

This manual provides complete instructions for installing, configuring and operating the Lenovo DP660 24‑needle flat‑bed receipt printer. It covers safety guidelines, unpacking, component identification, paper loading procedures for single‑sheet and continuous media, and detailed control‑panel functions.
Additional sections include maintenance tips, a full list of technical specifications, and an extensive command reference for ESC/POS and ESC/PK2 codes. The document also contains environmental requirements and regulatory information for safe use. This manual is written in Chinese.
| 打印针数 | 24针 |
|---|---|
| 打印列宽 | 106列 |
| 正常打印速度 (中文) | 64 CPS |
| 高速打印速度 (中文) | 100 CPS |
| 超高速打印速度 (中文) | 150 CPS |
| 打印头寿命 | 3亿次每针 |
| 单页纸进纸宽度 | 70‑340 mm |
| 连续纸进纸宽度 | 65‑335 mm |
| 色带寿命 | 600万字符 |
| MTBF | 10000 小时 |
| 外部接口 | 并口、USB |
| 使用电压 | 198‑242 V |
| 噪音 | <55 dB (A) |
| 外形尺寸 (宽×深×高) | 470 mm × 252 mm × 207 mm |
The DP660 uses a 24‑needle print head.
Single‑sheet paper can be between 70 mm and 340 mm wide.
The printer is equipped with a parallel port and a USB port.
Recommended operating temperature is 5 °C to 35 °C and humidity 40 %RH to 80 %RH.
