The N-TRON 102MC-FL is a rugged DIN‑Rail industrial media converter that transparently bridges 10BaseT copper to 10BaseFL fiber with extended temperature…

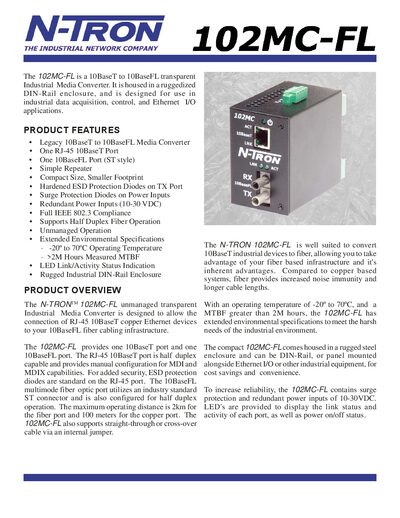

The 102MC-FL is a 10BaseT to 10BaseFL transparent Industrial Media Converter housed in a compact, DIN‑Rail‑mountable steel enclosure. It provides one RJ‑45 10BaseT port and one ST‑style 10BaseFL fiber port, with ESD and surge protection, redundant 10‑30 VDC power inputs, and LED status indicators.
Designed for harsh industrial environments, the converter operates from –20 °C to 70 °C, offers a measured MTBF of over 2 million hours, and supports half‑duplex operation on both copper and fiber links. The fiber port reaches up to 2 km, while the copper port supports up to 100 m of Cat‑3 cable.
| Dimensions (H × W × D) | 3.49" × 2.01" × 4.00" |
|---|---|
| Weight | 0.625 lb (0.28 kg) |
| Input Voltage | 10‑30 VDC |
| Steady Input Current | 100 mA @ 24 V |
| Operating Temperature | -20 °C to 70 °C |
| MTBF | >2 million hours (measured) |
| Maximum Fiber Distance | 2 km |
| Maximum Copper Distance | 100 m |
| Power Input Redundancy | 10‑30 VDC (dual inputs) |
The fiber port can operate up to 2 km.
It accepts a redundant power input of 10 VDC to 30 VDC.
It is an unmanaged transparent media converter.
It operates from –20 °C to 70 °C.
