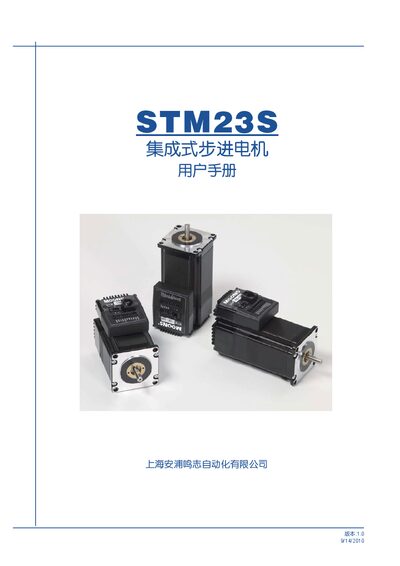

User manual for the MOONS STM23S integrated stepper motor covering installation, wiring, software setup, and operation.
The STM23S series integrates a stepper motor and its driver into a compact unit, saving space and simplifying wiring. This manual provides product introduction, safety guidelines, installation steps, wiring diagrams, software configuration, and example operations.
It also includes error codes, technical specifications, SCL command reference, heat‑dissipation advice, and contact information for MOONS support centers worldwide. This manual is written in Chinese.
| Power supply voltage | 12‑70 V DC |
|---|---|
| Input voltage range | 10‑75 V DC (rated 12‑70 V DC) |
| Maximum torque (STM23S‑2 series) | 0.9 N·m |
| Maximum torque (STM23S‑3 series) | 1.5 N·m |
| Digital inputs | 3 optically isolated inputs (5‑24 V) |
| Digital output | 1 optically isolated output (30 V, 100 mA) |
The STM23S‑2 series can deliver a maximum torque of 0.9 N·m.
The unit provides three optically isolated digital inputs (5‑24 V).
