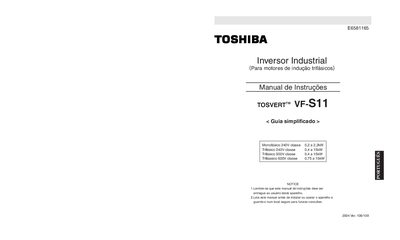

This guide explains how to safely install and operate the Toshiba VF‑S11 industrial inverter, which is intended for controlling the speed of three‑phase induction motors in industrial applications. It includes safety precautions, product identification, and detailed installation procedures.
Key sections cover safety warnings, product contents, installation positioning, standard connection diagrams (negative‑logic SINK and positive‑logic SOURCE), terminal descriptions, wiring material selection, and dimensional clearances to ensure proper ventilation and spacing between units. This manual is written in Portuguese.
| Input voltage (monophase) | 240 V, 0.2‑2.2 kW |
|---|---|
| Input voltage (trifasic 240 V) | 0.4‑15 kW |
| Input voltage (trifasic 500 V) | 0.4‑15 kW |
| Maximum output power | 15 kW |
Install the inverter in a well‑ventilated indoor area, mount it on a flat metal plate, keep adequate spacing between units, and remove the top ventilation covers when installing side‑by‑side.
The manual includes two standard wiring diagrams: one using negative logic (SINK) and another using positive logic (SOURCE).
