This document is an instruction manual for a 22-inch LCD monitor and its accessories. The LCD monitor supports resolutions up to 1920 x 1080 and has multiple interfaces and features.

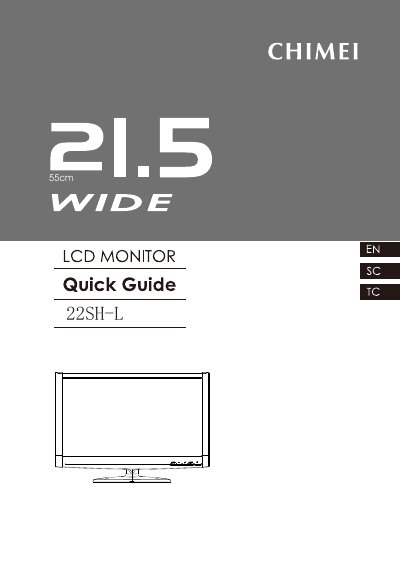

The Chimei 22SH-L is a 21.5‑inch (55 cm) TFT color LCD monitor that supports resolutions up to 1920 × 1080. The manual provides safety precautions, quick‑setup steps, and a CD‑ROM with additional guidance.
It details the package contents, supported input connectors (D‑SUB, DVI, HDMI, audio), power requirements, and full technical specifications such as brightness, contrast ratio, viewing angles, and dimensions. This manual is written in Chinese.
| Screen Size | 21.5 inch (Diagonal 55 cm) |
|---|---|
| Resolution | 1920 × 1080 (WXGA+) |
| Brightness | 250 cd/m² |
| Dynamic Contrast Ratio | 7:1 |
| Viewing Angle (Horizontal) | 170° |
| Input Power | AC100‑240 V, < 32 W (standby < 1 W) |
| Dimensions (W×H×D) | 525.5 mm × 375.6 mm × 165.9 mm |
| Net Weight | 3.11 kg |
The monitor accepts D‑SUB, DVI, and HDMI video signals, and also provides a 3.5 mm audio jack.
It operates from AC 100‑240 V and consumes less than 32 W during use, with standby power under 1 W.
