This document is a user manual for LED multimedia LCD displays, which includes important safety instructions, cleaning and maintenance guidelines, repair service information, description and accessories, LED multimedia LCD display operation methods, common channel function operations, screen display menus, etc.

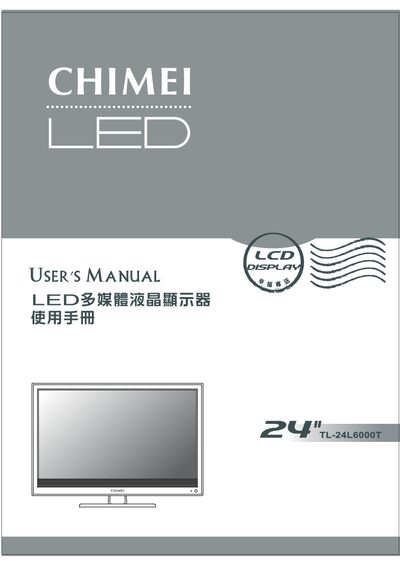

This manual covers the Chimei TL-24L6000T LED multimedia LCD display, describing its physical features, accessories, and recommended installation locations. It includes safety warnings, cleaning and maintenance guidance, and detailed operation procedures using the remote control and on‑screen menus.
Key sections include safety instructions, cleaning and maintenance, service and repair information, a full description of connectors and input options, screen‑adjustment menus, troubleshooting tips, and a complete specification table for the product. This manual is written in Chinese.
| Screen size | 23.6" diagonal (521.28 mm × 293.22 mm) |
|---|---|
| Aspect ratio | 16:9 (widescreen) |
| Resolution | 1920 × 1080 pixels |
| HDMI input | 1 × HDMI |
| VGA input | 1 × VGA (RGB D‑sub 15‑pin) with audio jack |
| Power input | 12 V DC, 3 A |
| Maximum power consumption | < 36 W |
| Operating temperature | 5 – 35 °C (41 – 95 °F) |
| Storage temperature | -20 – 60 °C (-4 – 140 °F) |
| Built‑in speaker | 2 × 8 Ω, 3 W max. |
Make sure the power cable is connected and the unit is turned on, verify that the signal cable is properly attached, and confirm the screen is not in power‑saving mode.
