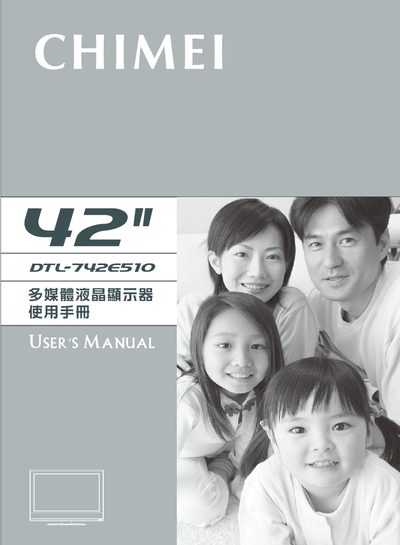

This document is the user manual of Chimei LCD display, which mainly introduces the features and characteristics of LCD display, installation and use methods, maintenance and maintenance methods, etc.
This manual covers important safety instructions, proper installation, and connection of the Chimei DTL-742E510 multimedia LCD TV. It explains how to attach accessories, mount the unit, and configure video and audio inputs such as HDMI, VGA, and component signals.
The guide also details remote‑control functions, picture and sound settings, digital TV menu navigation, and troubleshooting tips. A full specification table lists screen size, resolution, power requirements, and environmental limits. This manual is written in Chinese.
| Screen size | 42" LCD TV |
|---|---|
| Active area | 930.24 mm × 523.26 mm (42.02" diagonal) |
| Aspect ratio | 16:9 (Widescreen) |
| Maximum resolution | 1920 × 1080 (Full HD) |
| Contrast ratio | 2000:1 (typical) |
| Response time | 6.5 ms gray‑to‑gray (average) |
| Input voltage | AC 100‑240 V, 3.5 A max, 50/60 Hz |
| Power consumption (operating) | < 300 W |
| Standby power | < 1 W |
| Operating temperature | 5 – 35 °C (41 – 95 °F) |
| Storage temperature | -20 – 60 °C (-4 – 140 °F) |
| Built‑in speakers | 2 × 8 Ω 15 W |
Replace the batteries in the remote, check for static or lightning interference, and restart the TV after a short power‑off period.
