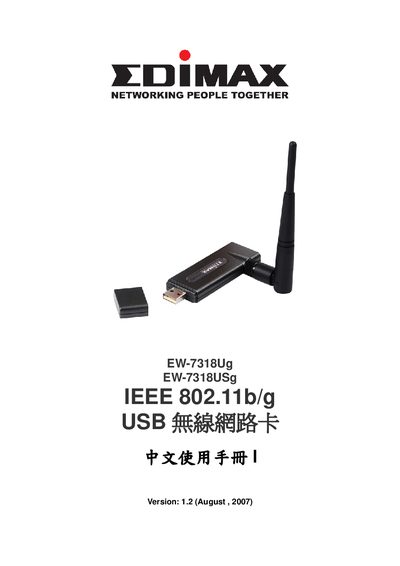

EW-7318Ug EW-7318USg IEEE 802.11b/g USB Wireless Network Card User Manual, This user manual introduces the functions and features of EW-7318Ug / EW-7318USg, installation process, setting application, etc.
The Edimax EW-7318Ug and EW-7318USg are USB wireless LAN adapters that support IEEE 802.11b/g standards. The manual provides detailed information on hardware specifications, regulatory compliance, and software installation procedures.
It also includes the software license agreement for the Edimax Wireless Utility, supported Windows operating systems, and troubleshooting tips for common wireless networking issues.
| Wi‑Fi Standard | IEEE 802.11b/g |
|---|---|
| Interface | USB 2.0 Type A |
| Frequency band | 2.4000–2.4835 GHz |
| Data rates | 1–54 Mbps (auto fallback) |
| Transmit power | 17 dBm + 2 dBm |
| Receiver sensitivity | -70 dBm @54 Mbps, -83.5 dBm @11 Mbps |
| Operating temperature | 0 °C to 50 °C |
| Relative humidity | 10‑95 % (non‑condensing) |
| LED indicator | Link/Activity |
The adapters work with Windows 98SE, Windows ME, Windows 2000, Windows XP, and Windows Vista.
The card operates in the 2.4 GHz ISM band from 2.4000 GHz to 2.4835 GHz.
