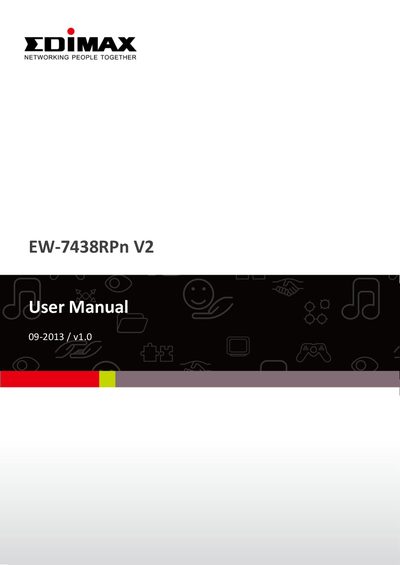

User manual for the Edimax EW-7438RPn V2 Wi‑Fi extender covering installation, configuration, and safety information.
The EW-7438RPn V2 is a Wi‑Fi extender that can operate in three modes: Extender, Adapter/Bridge, and Access Point. The manual provides detailed steps for setting up each mode, including LED status indicators, hardware overview, and safety guidelines.
Installation involves connecting the device to power, selecting the appropriate mode, and using a web browser to configure settings via the http://edimax.setup URL. The guide also covers IP configuration, WPS setup, and troubleshooting tips.
| Supported Wi‑Fi band | 2.4 GHz |
|---|---|
| Hardware interfaces | Power switch, Ethernet port, WPS/Reset button, LEDs |
| LED indicator for power | Green flashing while booting, solid green when ready |
| Reset indicator | LED flashes during factory reset |
Press the reset button; the LED will flash indicating the device is resetting to factory default settings.
The green power LED flashes while the system boots and stays solid green when the extender is powered on and ready.
Open a web browser and go to http://edimax.setup to start the setup wizard.
